IP Video Intercom System For Apartment
Price term: FOB Zhuhai, China
OEM/ ODM service: Acceptable
Delivery time:3-5 working days after receipt payment for sample order, 20-30 working days for neutral bulk order, 30-40 working days for OEM order
Payment: T/T, paypal, Western Union
Présentation du produit

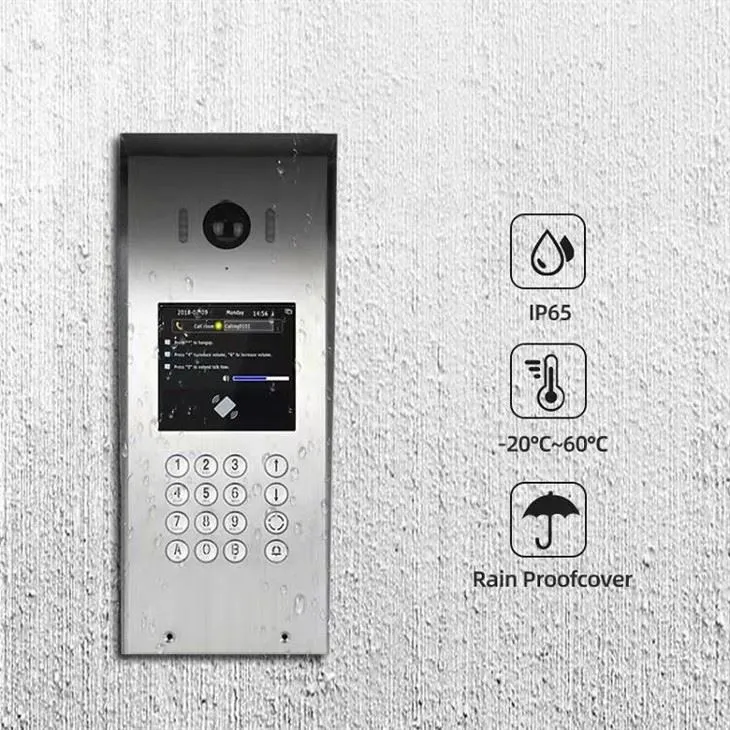

IP Video Intercom System For Apartment is with unlocking function. Indoor monitor is 7 inch touch screen, outdoor station is 4.3 inch TFT screen. Indoor monitor is built in WiFi module, residents can use Tuya app( TuyaSmart/ Smart home) to remote control the video door phone system. When visitors call from outdoor station, mobile app and indoor monitor will receive the call at the same time, residents can choose anyone to answer, residents will never miss a call. Outdoor station is with keypad for room number and password. The outdoor station has a very user- friendly design: All the keypad has braille. As we are a factory, we can support OEM and ODM services, you can contact us for more details.
Datasheet
Part Number | 87721 |
Display screen | 7" TFT LCD touch screen |
Definition | 7" (1024x600 pixels) |
CCTV camera input | 960P |
Operation system | Embedded Linux Operation System |
Processor | Embedded MCU Processor |
Calling mode | Two-way conversation |
Calling time | 120s |
Standby current | Maximum 250mA |
Working current | Maximum 600mA |
Power supply | 15 VDC/PoE ( IEEE 802.3af) |
Work temperature | 0 plus 50 degree |
Installation | Surface mount |
Picture format | JPEG standard format |
MicroSD card (max 32GB) (>Class 10) | No supplied |
Dimension (L x W x D) | 12019022mm |
Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
Custom Background | Yes (Background picture from MicroSD card when installed) |
Part Number | 87226 |
Dimensions | 36914443mm |
View angle | 110 degree wide angle camera |
Definition (Hor.) | 720P |
LEDs for night vision | IR LEDs Supplement |
Power consumption | 150mA max. |
Power source | 15 VDC/PoE ( IEEE 802.3af) |
Operation temp. | -40 plus 50ºC |
Working humidity | 10 percent to 95 percent |
Installation | Surface mount/Flush mount |
Lock | N/O, N/C Contact |
Ingress Protection Rating | IP65 |
Braille design
Multiple ways to unlock
System Diagram
Packing:
